Slitter Positioning Systems

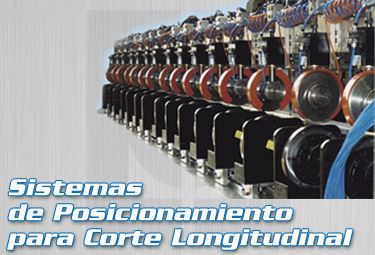

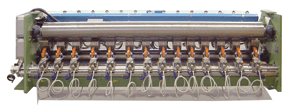

The Aurora system on linear rail is a tangential slitting system composed of knife holders and individual driven anvils linked by a drift pin. This link allows for quick, precise, and simultaneous repositioning of upper and lower slitters. The Aurora system is offered in manual, digitally assisted, and fully automatic versions. Automatic positioning is done through an intuitive control panel with precise locational feedback through MTS (magneto-restrictive postion sensors). MTS technology ensures accuracy up to .006". The "Auretta" bottom knife has two cutting edges. When one edge is worn, the ring can be flipped easily to make use of the other edge.

Expando

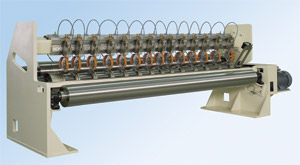

The Expando system knife holders are mounted on linear bracket assemblies. The bottom anvils are mounted to a hardened chromed air shaft which clamps the anvils in place when air is supplied. A double acting linking drift pin on the Expando knife holder allows the knife holder and the shaft mounted anvil to be repositioned simultaneously. The Expando system is offered in manual, digitally assisted, and fully automatic versions. The "Expandette" bottom knife allows easy change of the cutting ring without removing the shaft.

Jolly

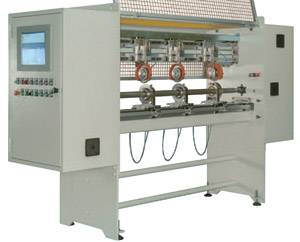

The Jolly is a longitudinal slitting
system ideal for extruded plastics
and laminated materials.

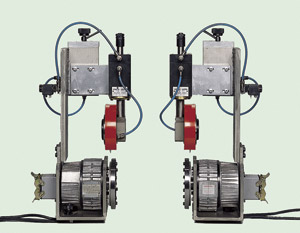

Kobe
